Vac-U-Boat's 385 type DC motor for direct-drive installation in scale boats.

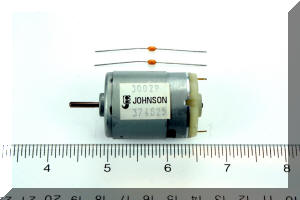

TG108 (bare motor w/ 2 caps) and TG109 (motor with leads and caps installed).
| This is a new DC 385 type motor manufactured by Johnson
Motor Company. This is the standard Vac-U-Tug Tugboat
motor. 1.130" dia x 1.5" long can (1.68" including the shaft bearing
housings) 2.2" overall length with a 0.090" dia shaft that has flutes that
increase the diameter to approximately 0.094", roughly 3/32" diameter.
(27.5mm dia x 38mm L with 2.3mm shaft) 130 turns of wire. Designed for a
hair-dryer. It can handle 7.2 volts up to 12 volt (13.8 volt) lead calcium
batteries. Draws approximately 1/2 amp at 7.2 volts with the stock Tug prop.
The shaft is a snug fit to a 3/32" coupling. |
 |

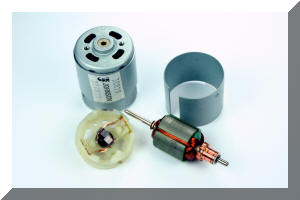

| Epoxy-computer-balanced 5-pole armature has 75 turns of 0.27mm copper wire. Higher low-speed torque and lower RPM than 3-pole stock motors. Large bronze oil impregnated bushings. Carbon brushes. This motor can direct-drive a 1.75" scale prop with cool-quiet performance. |
 |

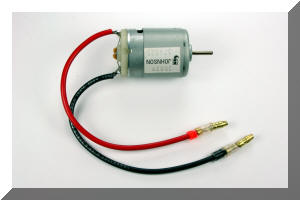

| The TG109 includes color-coded 16 gauge 6-1/2"
insulated leads with brass 1/8" bullet terminals insulated with clear
silicone sleeves. Two external capacitors are installed.
Although it has face-mount threaded holes, it is easier to mount using a plastic or metal conduit clamp due to its small size. |
 |

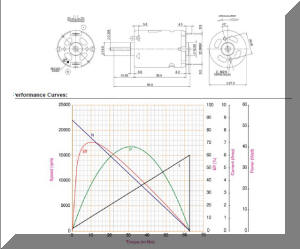

| PDF of physical specifications (Metric) of a similar motor
that has no Stator Ring as the tug motor has. Courtesy of Johnson Electric Engineering Ltd.
Click the photo to link to a 310K Acrobat File. |
 |
