Vac-U-Boat 15 Degree Brushless Motor Mount

Better support for Feigao style L, XL, and NEU Motors

Secures your motor to minimize motor impact-flexing damage to your drive.

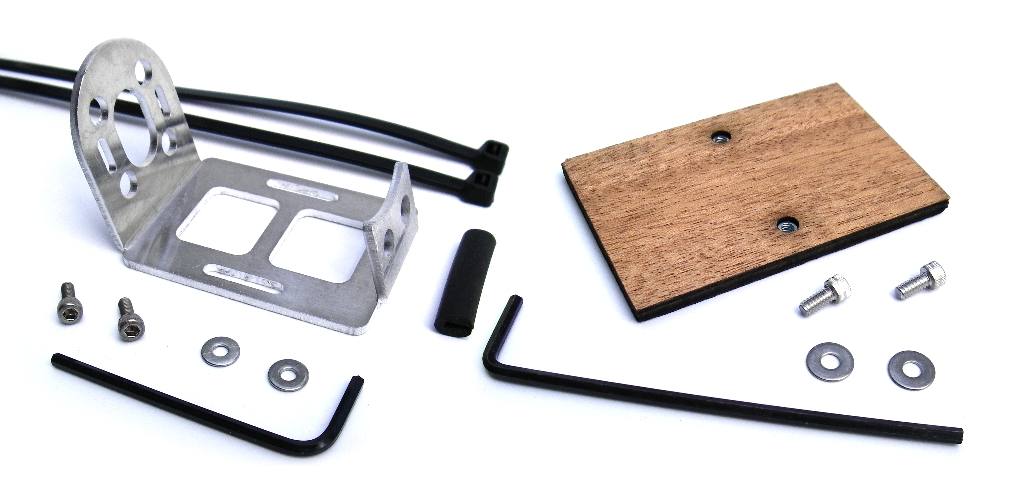

Brushless Motor Mount Assy. w/ Base # P104

Includes 15 aluminum mount, rubber cushion, stainless steel 3mm x 8mm socket head screws for mounting brushless motor, stainless steel washers, 2.5mm hex wrench, two nylon pull-ties for securing your motor, plus a 3-1/8" x 2-1/16" x 3/16" hot-press laminated domestic mahogany plywood base with pre-installed 6-32 blind nuts, stainless steel 6-32 x 5/16" socket head screws, stainless steel washers, and a long 7/64" hex wrench.

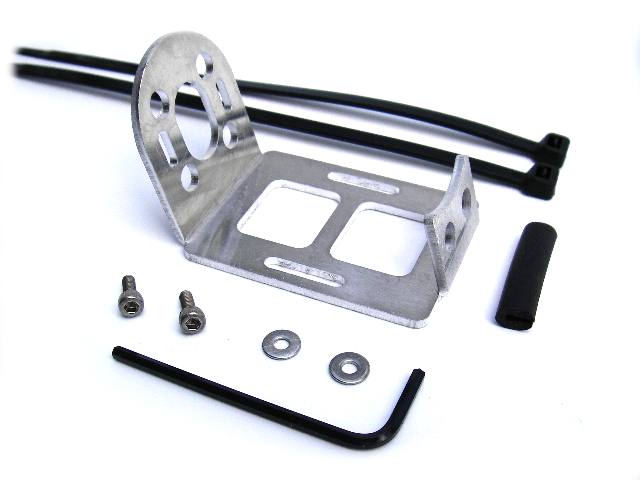

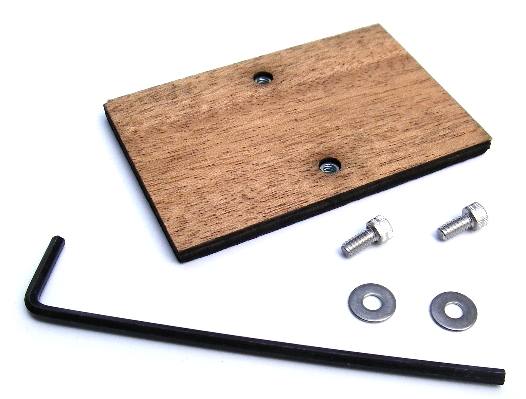

Brushless Motor Mount Assy. # P103 Brushless Motor Base Kit # P105
Includes aluminum 15 mount, rubber cushion, stainless steel 3mm x 8mm socket head screws for mounting brushless motor, stainless steel washers, 2.5mm hex wrench, two nylon pull-ties for securing your motor. A 3-1/8" x 2-1/16" x 3/16" hot-press laminated domestic mahogany plywood base with pre-installed 6-32 blind nuts, stainless steel 6-32 x 5/16" socket head screws, stainless steel washers, and a long 7/64" hex wrench.

Buy extra base kits for your other hulls.

Designed for a 1:13 scale hydroplane, this .090 aluminum motor mount is designed specifically for long, heavy brushless motors with 1" face mount screw spacing. Base mount slots can fit a 6-32 machine screw. Mount provides 1/4" vertical and 5/8" horizontal adjustment for a Feigao style brushless motor. Epoxy the optional plywood base into your hull and you can easily remove the motor & mount assembly from your hull for cleaning or maintenance.

The Brushless Mount fits Feigao-style L, XL, and Neu 1515 motors without modification. There is room for standard aluminum and silicone water-cooling jackets.  Front vent holes align with Neu Motor vent holes.

The Brushless Mount can be modified to fit Neu 1521 and 1527 motors by enlarging the face-mount slots for 4mm machine screws and enlarging the shaft hole to fit the 14mm raised hub around the shaft. Modifying the rear brace to accommodate larger aluminum water-cooling jackets may be necessary.

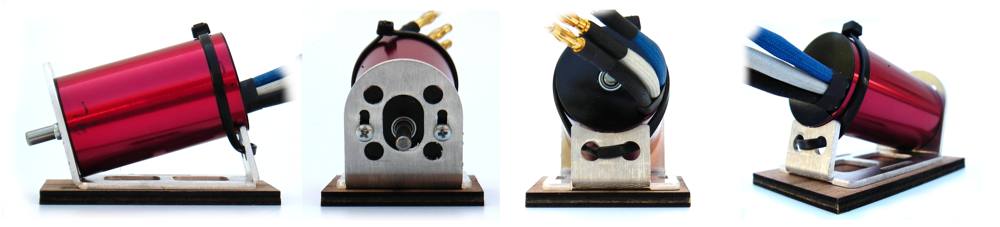

  540 L Brushless Motor

Installed with no modifications. Motor is secured to the mount with a nylon pull-tie to prevent bending the mount and damaging your drive hardware in an accident.

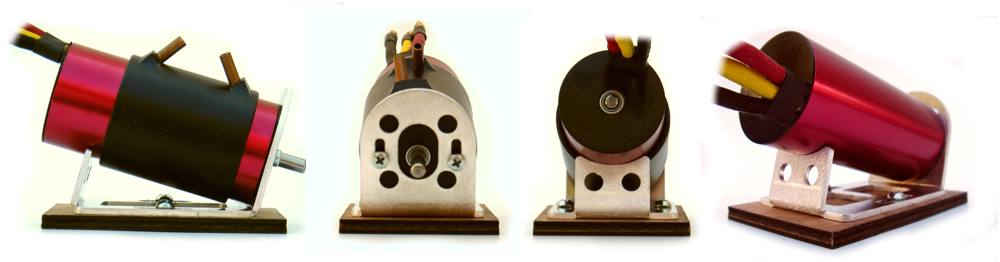

540 XL Brushless Motor

Installed with no modifications. Shown with OSE Water Jacket installed.

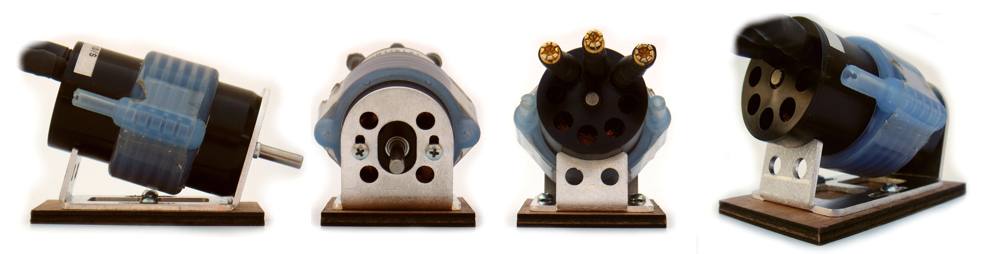

NEU 1515 Brushless Motor

Installed with no modifications. Shown with Silicon Water Jacket.

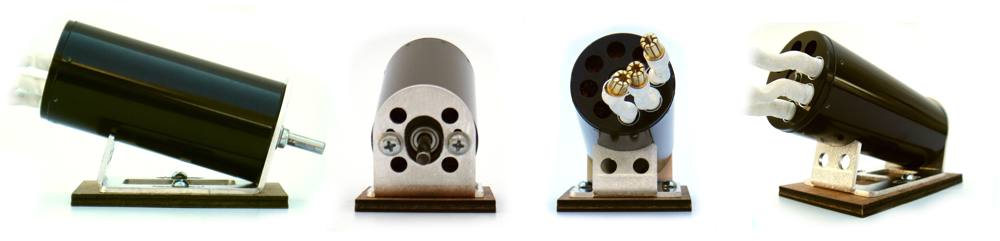

NEU 1521 Brushless Motor

Installed by widening mount slots to fit 4mm screws. Shaft slot enlarged to fit raised hub around the motor shaft.

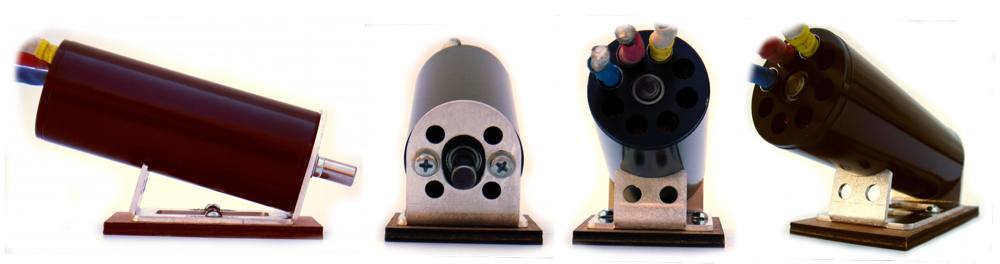

NEU 1527 Brushless Motor

Installed by widening mount slots to fit 4mm screws. Shaft slot enlarged to fit raised hub around the motor shaft.

Probably too much motor for this mount. 4 base mount screws recommended. Still, nice looking!
